Product Overview

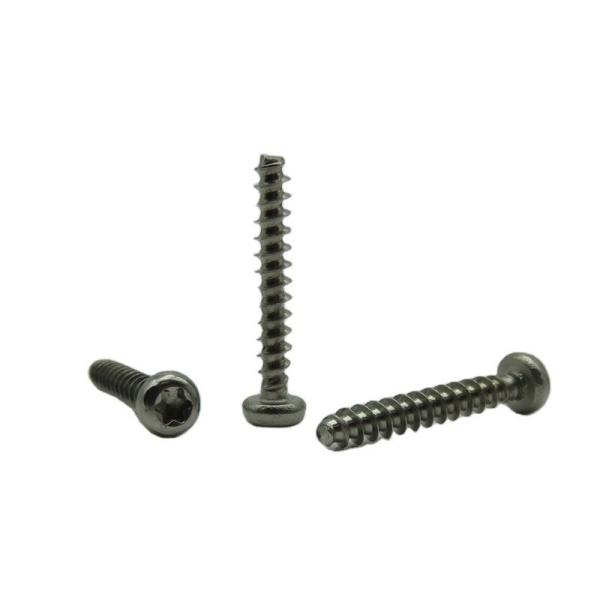

Achieve superior fastening performance with our Pan Head Torx 304 Stainless Steel Self-Tapping Screws, engineered for durability, corrosion resistance, and effortless installation in metal, plastic, or composite materials. Featuring a Torx drive for maximum torque transfer and a sharp self-tapping point, these PB3×20 screws (3mm diameter × 20mm length) are ideal for automotive, construction, and marine applications. Customizable dimensions and finishes ensure a perfect fit for your project’s demands.
Key Features
✅ 304 Stainless Steel Construction
Premium grade 304 stainless steel offers excellent corrosion resistance, making these screws ideal for outdoor, marine, and chemical environments.
✅ Torx Drive (T-Star)
Reduces cam-out risk, allows higher torque application, and ensures a secure grip for faster, more reliable installations.
✅ Self-Tapping Design
Sharp PT (Type T) thread cuts through materials without pre-drilling, saving time and labor in metal sheets, plastics, or wood.
✅ Pan Head Profile
Low-profile, rounded head sits flush for smooth surfaces and even pressure distribution, minimizing material damage.
✅ Customizable Specifications
Tailor screws to your needs:
- Size: Diameters (2mm–8mm), lengths (5mm–50mm).
- Finish: Bright polished, passivated, or optional coatings.
- Packaging: Bulk, labeled, or branded packaging.
✅ ROHS & ISO Compliance
Certified for environmental safety and international quality standards.
Technical Specifications
Material: AISI 304 Stainless Steel
Head Type: Pan Head (DIN 7985)
Drive Type: Torx (T10–T30 available)
Thread: PT (Self-Tapping Type T)
Diameter: 3mm (PB3) – Customizable
Length: 20mm – Customizable up to 50mm
Finish: Bright polished (standard), passivated, or black oxide
Tensile Strength: 500 MPa (Grade 70)
Temperature Resistance: -40°F to 1200°F (-40°C to 650°C)
Standards: DIN 7985, ISO 14583, ASTM F738
